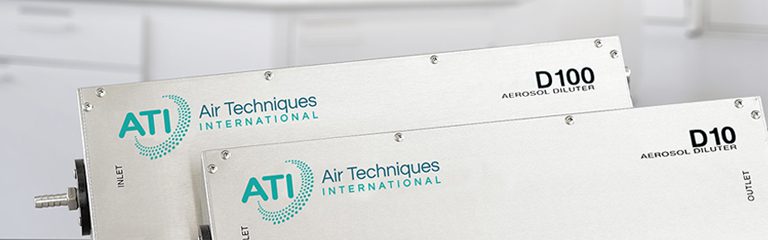

TDA-D10-D100 Aerosol Diluters
Printable Specification Sheet
Description
The ATI Aerosol Diluters were developed to fill a specific
need in the HEPA filter testing industry. The diluter enhances
the effectiveness of optical particle counters by diluting
the upstream concentration of an aerosol to prevent saturation
of the particle counter. The diluter has been designed to
minimize pressure drop and aerosol loss as a function of particle
size.
Features
The TDA-D series of Aerosol Diluters will work with any 1
cfm particle counter by placing it inline between the particle
counter and the aerosol being sampled. The diluter is available
in 10:1 and 100:1 versions and will work with any type of
aerosol challenge (PSL, PAO, DOP, NaCl).
Specifications
| Feature |
TDA-D10 |
TDA-D100 |
| Particle Dilution |
10:1 |
100:1 |
| Air Flow Rate |
1 cfm |
1 cfm |
| Pressure Drop |
Nominally 1" W.C. |
Nominally 1" W.C. |
| Electrical |
not required |
not required |
| Run Time Meter |
included |
included |
| Material |
stainless steel |
stainless steel |
| Inlet/Outlet |
0.375 inch ID |
0.375 inch ID |
| Optional Inlet/Outlet |
0.25 inch ID |
0.25 inch ID |
| Size (in.) |
6.5 W × 3.3 H × 22.0 L |
6.5 W × 3.3 H × 22.0 L |
| Size (cm) |
15.5 W × 8.3 H × 55.9 L |
15.5 W × 8.3 H × 55.9 L |
| Weight (lbs.) |
7.0 |
7.0 |
| Weight (kg) |
3.0 |
3.0 |
Applications:
- Clean Rooms
- Laminar Flow Benches
- Biosafety Cabinets
- Glove Boxes
- HEPA Vacuum Cleaners
- HVAC Systems
- HEPA Filters
- ULPA Filters
- Negative Pressure Filtration Units
- Surgical Suites
- Nuclear Filter Banks
- Collective Protection Filters
- Research and Development
Industries
- Pharmaceutical
- Food Processing Veterinary Medicine
- Laboratories
- Asbestos Abatement
- Heavy Metal Processors
- Nuclear Power and Fuel
- Hospitals
- Chemical Processing
- Certifiers
- NBC Defense Agencies
- Governmental Labs
- Filter Manufacturers
- Micro Electronic
- Electronic
- Biotechnology
- Micromechanics
|
