4B / 4B Lite Laskin Nozzle Aerosol Generator

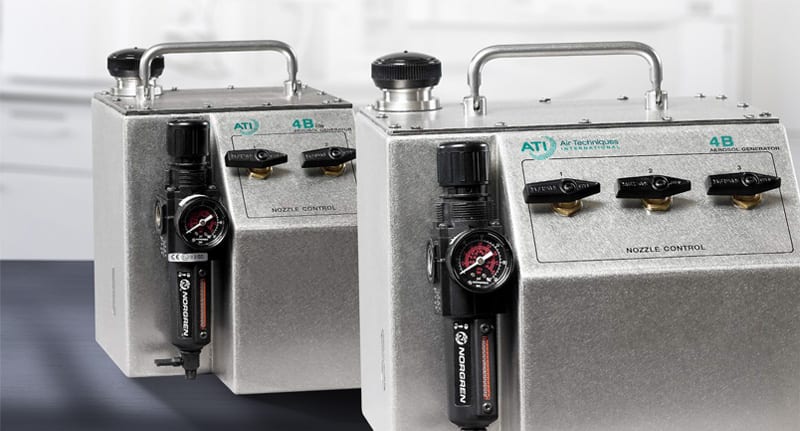

The 4B series family of Laskin-Nozzle aerosol generators are durable, portable, and reliable. Designed for testing filter systems ranging from small glove boxes to large cleanroom plenums, ATI Laskin Nozzle generators provide the ideal solution for creating a polydispersed, submicron aerosol to certify and qualify in-situ filter systems.

Applications

  • Independent Filter Certifiers
  • Nuclear Facilities
  • Pharmaceutical Manufacturers
  • Medical Facilities & Cleanrooms
  • Bio-Safety Cabinets & Fume Hoods*
    * per NSF/ANSI 49

Key Features & Benefits

  • Adjustable aerosol concentration output to meet different application requirements
  • Air flow rates from 405 to 8,100 cfm for a wide variety of testing requirements
  • Flex-fuel capable, allows for the use of a variety of reagents
  • Lightweight and rugged, ideal for remote locations

A Tough, Portable Solution

The 4B series of Laskin Nozzle aerosol generators are durable, portable, and reliable. Designed for testing filter systems ranging from small glove boxes to large Clean-room plenums, ATI Laskin Nozzle generators provide the ideal solution for creating a poly-dispersed, sub micron aerosol to certify and qualify in-situ filter systems. End users include independent filter certifiers, government and commercial nuclear facilities, pharmaceutical manufacturers, medical facilities, as well as other industrial applications.

A Flexible Solution

The 4B family of aerosol generators produce an industry standard true Laskin III-A repeatable aerosol and feature adjustable aerosol concentration output to meet multiple application requirements. These generators are used in conjunction with an aerosol photometer to measure the aerosol penetration of an individual filter or filter system, typically to identify, quantify and repair leaks. Aerosol concentration output varies by generator model; however concentrations can be achieved from 100 μg/l down to 10 μg/l at airflows ranging from 405 to 8,100 cfm*.

Rugged Convenient Design

The 4B family features rugged stainless steel, with easily cleanable construction, a large fill port, jet and pressure control, and a standard three-inch sanitary fitting outlet collar.

Optional Hose Adapter Kit

An optional hose adapter kit (hose not included), used to introduce aerosol remotely, connects easily to the standard outlet collar.

Optional Heavy Duty Case

Heavy duty, water-proof transport case with wheels. Accommodates either a 4B, 4B-Lite or 6D generator, with space for the optional hose adapter. (Universal case with 6D generator shown).



# Description Part Number

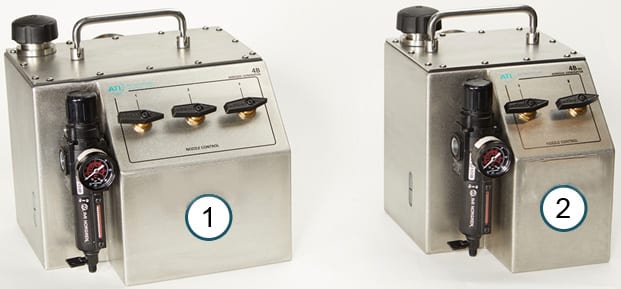

1 4B T4B0-1155
2 4B Lite T4BL-1156
Not Shown Operating Manual 1800188
Performance & Product Specifications
4B 4B Lite
Dimension

(L x W x H)

25 cm x 28 cm x 26 cm

(10” x 11.25” x 10.5”)

19 cm x 28 cm x 26 cm

(7.6” x 11.25” x 10.5”)

Weight 7.3 kg (16 lb) 5.5 kg (12 lb)
Aerosol Output 50 – 8,100 cfm 50 – 4,050 cfm
Concentration* 100 μg/l @ 810 cfm
10 μg/l @ 8,100 cfm
100 μg/l @ 405 cfm
10 μg/l @ 4,050 cfm
Generator Type Six Nozzle Laskin Style Aerosol Generator

(operate 1 to 6 Laskin Nozzles)

Three Nozzle Laskin Style Aerosol Generator

(operate 1 to 3 Laskin Nozzles)

Compressed Air min 2.65 cfm/nozzle @ 20 psig
Aerosol Type Poly-dispersed (Cold)

If more than 20 psig is used, the output concentration will increase and conversely, if less than 20 psig is used, the output concentration will decrease.*If using more than two nozzles, upstream concentrations should be measured.

Accessories:

4B Series Laskin-Nozzle Aerosol Generators Accessories
# Description Part Number

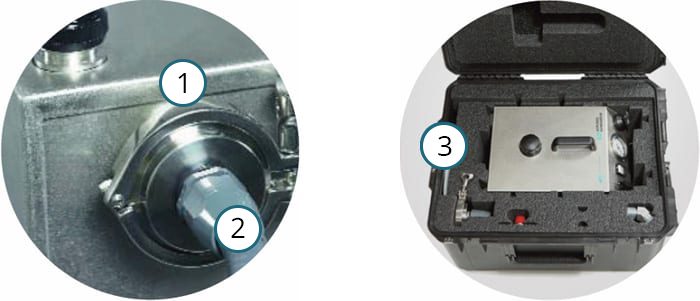

1 Hose Adapter Kit 9300100
2 4B/4B Lite/6D Universal Rugged Carrying Case (6D Shown in case) 9300424

Optional Hose Adapter Kit

A hose adapter kit (hose not included), used to introduce aerosol remotely, connects easily to the standard outlet collar and is available as an accessory

Rugged Waterproof and Portable Carrying Case

  • Includes wheels and telescoping handle making it extremely portable
  • Enough room for the generator, hose adapter, and carrying straps
  • Waterproof, crushproof and dustproof for extra protection!
  • Case dimensions: 63.5cm x 50.8cm x 36.8cm (25″ x 20″ x 14.5″), weighs only 10.5 kg (23lbs)!
Part Number & Ordering Information
Description Part Number
4B Six Nozzle Laskin Style Aerosol Generator (operate 1 to 6 Laskin Nozzles) T4B0-1155
4B Lite Three Nozzle Laskin Style Aerosol Generator (operate 1 to 3 Laskin Nozzles) T4BL-1156
Laskin Hose Adaptor Hose Adapter Kit for 4B, 4B Lite and/or 6D 9300100
4B/6D Heavy Duty Case Heavy Duty Transport Case with wheels.

Accommodates 4B, 4B Lite or 6D, cap and space for Hose Adapter

9300424
4B + Heavy Duty Case 4B Laskin Nozzle Generator + Heavy Duty Transport Case with wheels 9300425
4B Ensemble 4B Laskin Nozzle Generator + Laskin Hose Adapter + Heavy Duty Transport Case with wheels 9300426
4B Lite + Heavy Duty Case 4B Lite Laskin Nozzle Generator + Heavy Duty Transport Case with wheels 9300427
4B Lite Ensemble 4B Lite Laskin Nozzle Generator + Laskin Hose Adapter + Heavy Duty Transport Case with wheels 9300428
