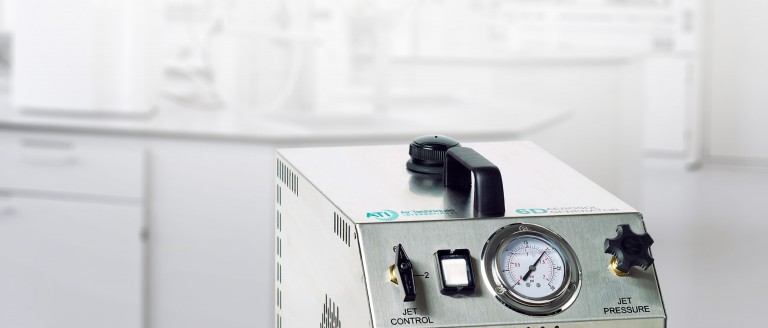

6D Laskin Nozzle Aerosol Generator

The 6D is a small, light, and rugged portable, self-contained Laskin-Nozzle aerosol generator with integrated compressor. It is ideal for testing a wide variety of filter systems with air flows up to 2,000 cfm by generating a poly-dispersed, sub-micron aerosol. Applications include workstations, negative- pressure filtration units, biological safety cabinets, ceiling modules and more. It can also be used for testing positive pressure systems using an optional Positive Injection Pump and hose adapter kit.

Applications

  • Independent Filter Certifiers
  • Nuclear Facilities
  • Pharmaceutical Manufacturers
  • Medical Facilities & Cleanrooms
  • Bio-Safety Cabinets & Fume Hoods

Key Features and Benefits

  • Integrated compressor, no external air required
  • Flex-fuel capable, allows for the use of a variety of reagents
  • Integrated pressure gauge guarantees the correct pressure across the nozzle
  • Air flow rates from 200 to 2,000 cfm to test a wide variety of filter systems

A tough, portable solution

The 6D is a small, light, and rugged portable, self-contained Laskin-Nozzle aerosol generator. It is ideal for testing a wide variety of filter systems with air flows up to 2,000 cfm by generating a poly-dispersed, sub-micron aerosol. Applications include workstations, negative-pressure filtration units, biological safety cabinets, ceiling modules, and more.

The 6D can also be used for testing positive pressure systems using an optional Positive Injection Pump and hose adapter kit. On-site routine maintenance is easy. Its integrated compressor makes implementation simple – all you need is a power source.

Hose Adapter Connector

Performance Guaranteed

6D aerosol output is regulated with an included calibrated pressure gauge; guaranteeing 20psi across the nozzle per industry standards. The 6D complies with all applicable electrical and safety requirements and is CE approved.

Easy to use

Integrated liquid fill sight glass, drain port, and power cord storage make operating, transporting, and storing the 6D simple and easy. An optional hose adapter kit, used to introduce aerosol remotely, connects easily to the standard outlet using the sanitary flange or simple NPT connection.

Optional Heavy Duty Case

Heavy duty, water-proof transport case with telescoping handle and wheels. Accommodates either a 4B, 4B-Lite or 6D generator with space for optional hose adapter. (Universal case with 6D generator shown).

Site Glass
Power Cord Storage
Drain Port

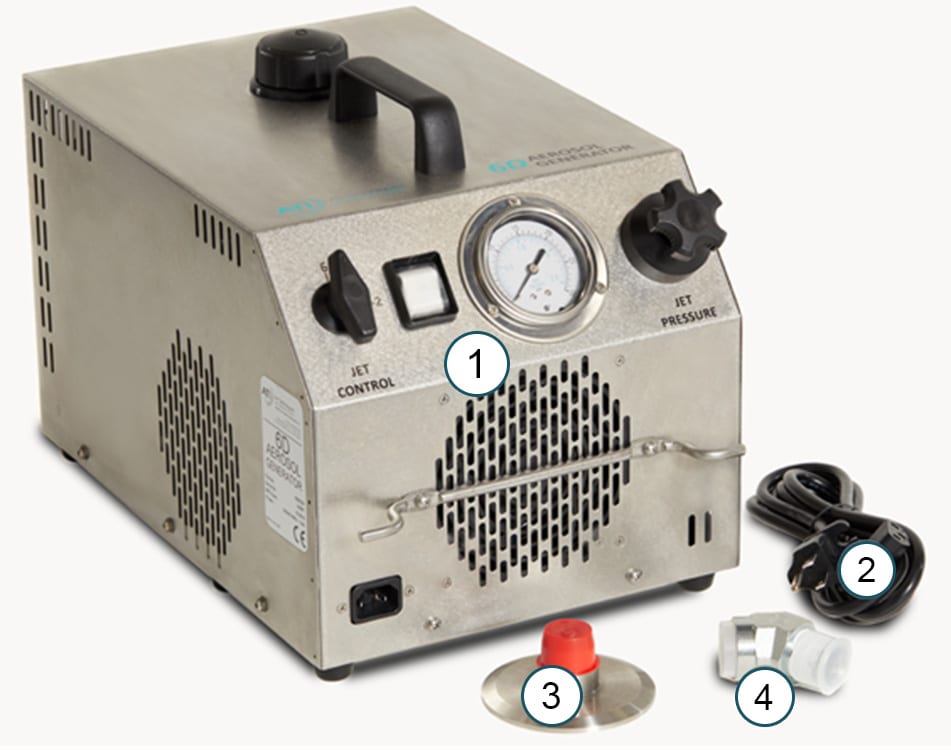

What’s Included
# Description Part Number
1 6D – 120V or 240V 9300237 or 9300238
2 Power Cord 6700001 (120V)
6700133 (240V)
3 Output Flange 1000725
4 Output Elbow 5100935
5 Operating Manual 1800223
Performance & Product Specifications
Dimension (L x W x H) 37.4 cm x 25.7 cm x 27.6 cm
(14.8” x 10.1” x 10.9”)
Weight 15kg (34lb.)
Aerosol Output 50 – 2,000 cfm
Aerosol Concentration* 100 μg/l @ 200 cfm / 10 μg/l @ 2,000 cfm
Generator Type 2 or 6 Laskin Nozzle Jets (1/2 or 1-1/2
Nozzles)
Aerosol Type Poly-dispersed (Cold)
Electrical 120VAC/60 Hz or 240VAC/50Hz
Compressed Air Not Required, On-board integrated
compressor

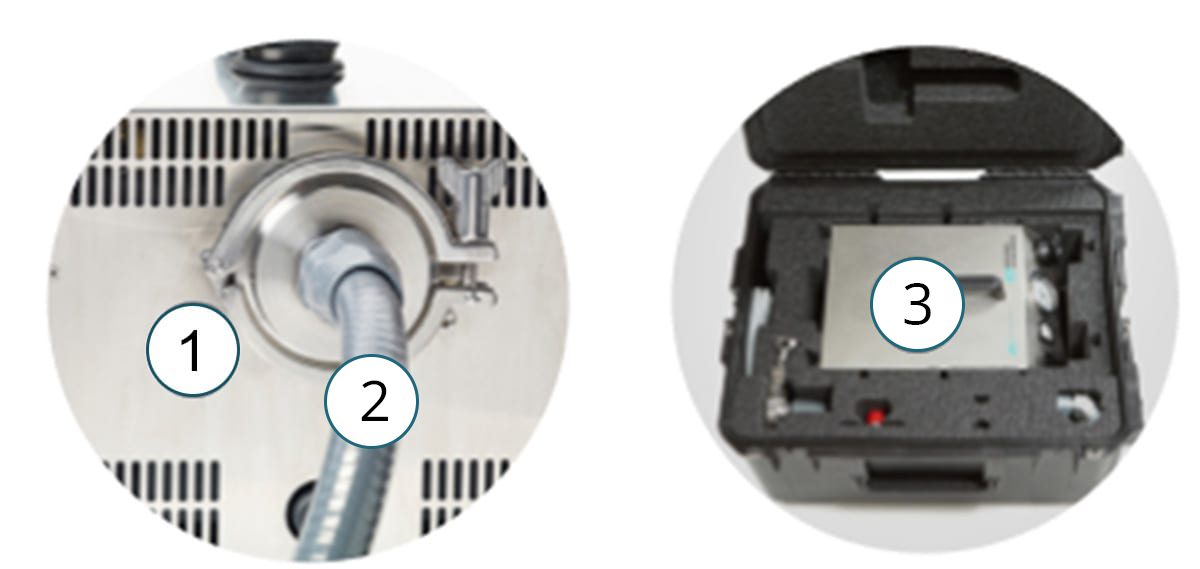

Accessories:

6D Laskin-Nozzle Aerosol Generator Accessories
# Description Part Number
1 Hose Adapter Kit 9300100
2 Rugged Waterproof Carrying Case 9300424

Optional Hose Adapter Kit

A hose adapter kit (hose not included), used to introduce aerosol remotely, connects easily to the standard outlet collar and is available as an accessory

Rugged Waterproof and Portable Carrying Case

  • Includes wheels and telescoping handle making it extremely portable
  • Enough room for the generator, hose adapter, and carrying straps
  • Includes a cap to prevent leaking
  • Waterproof for extra protection!
  • Case dimensions: 63.5cm x 50.8cm x 36.8cm (25” x 20” x 14.5”), weighs only 10.5kg (23lbs)!
Part Number & Ordering Information
6D Laskin Nozzle Aerosol Generator & Accessories Description Part Number
6D 2 nozzle Laskin Style Aerosol Generator (120v) (operates a 2- and 4-Jet Nozzle) 9300237
6D 2 nozzle Laskin Style Aerosol Generator (240v) (operates a 2- and 4-Jet Nozzle) 9300238
Laskin Hose Adapter Hose Adapter Kit for 4B, 4B Lite and/or 6D 9300100
6D Heavy Duty Case Heavy Duty Transport Case with wheels. Accomodates 4B, 4B-Lite or 6D, cap and space for Hose Adapter 9300424
6D (115v) + Heavy Duty Case 2 nozzle Laskin Style Aerosol Generator (120v) + Heavy Duty Transport Case with wheels 9300429
6D (230v) + Heavy Duty Case 2 nozzle Laskin Style Aerosol Generator (240v) + Heavy Duty Transport Case with wheels 9300430
6D (115v) Ensemble 6D 120v + Laskin Hose Adapter + Heavy Duty Transport Case with wheels 9300431
6D (230v) Ensemble 6D 240v + Laskin Hose Adapter + Heavy Duty Transport Case with wheels 9300432
