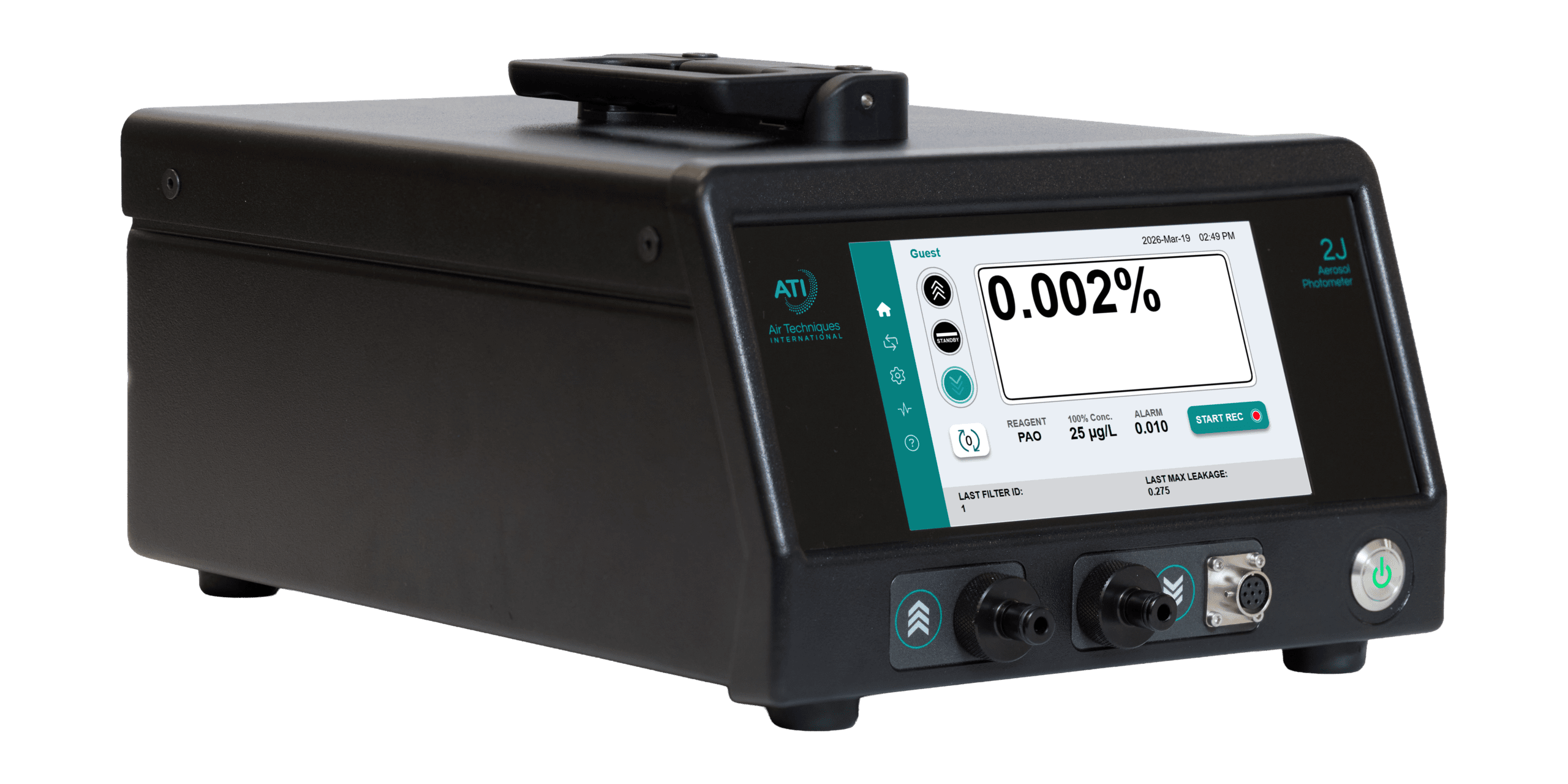

2J, 2J-N Aerosol Photometer

BROCHURE

Unmatched user conveniences, data integrity and security, and calibration precision from the world’s most trusted photometer manufacturer.

Models

  • 2J: Standard features
  • 2J PRO: Standard 2J features plus data storage, data security, leak test traceability, and multiple user levels
  • 2J-N: Hardware designed for hazardous environments, meets ASME N511, ASME N510, ASME N509, and ASME AG-1
  • 2J-N PRO: Standard 2J-N features plus data storage, data security, leak test traceability, and multiple user levels

1 2J PRO model only
2 All calibrations from ATI USA and ATI UK facilities are ISO/IEC 17025 accredited. For calibrations outside ATI, contact your local service center.

Key Features

  • 21 CFR Part 11 compliant for collected data1
  • ISO/IEC 17025 accredited calibration2
  • Can be powered by an external battery for portable use
  • Multiple user levels for greater data integrity and security1
  • Large 17.8 cm (7 in.) color touchscreen with easy-to-read viewing angle
  • Wi-Fi and USB connectivity for easy data transfer1
  • Firmware updates can be performed by the user

Click the video to learn more.

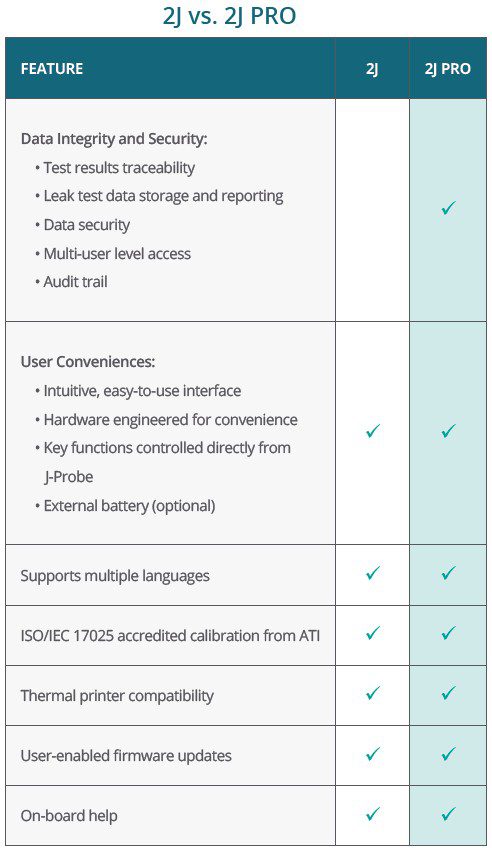

Choose the 2J PRO when data integrity and security are critical.

Product Specifications
Dimensions (L x W x H) 39.1 cm x 25.4 cm x 17.8 cm (15.4 in. x 10.0 in. x 7.0 in.)
Weight 7.7 kg (17.0 lbs)
Display/Touchscreen 17.8 cm (7 in.) scratch-resistant color touchscreen
Supports multiple languages
Power Minimum Input Power and Connection: 100W, USB-C
Included Power Adapter Specifications:
Input: 100 to 240V, 50/60 Hz
Output: 100 watts USB-C
Auto Zero Automatically establishes zero reading at startup
User-enabled re-establish zero
Alarm User selectable audible, visual, and vibratory (J-Probe only)
Flow Control 1 cfm (28.3 lpm) +/- 5%
Reagent Settings PAO-4, PAO-4 High, DOP (DEHP), DEHS (DOS), Ondina, Paraffin, User-Defined Reagents
Dynamic Range 0.0001 mg/m3 (µg/l) to 120 mg/m3 (µg/l)
Up to 600 mg/m3 (μg/l) PAO High
Accuracy 1% of readings (0.01% to 100%)
Repeatability 0.5% of readings > 0.01% to 100%
Data Output Thermal printer (optional), USB, Wi-Fi
Data Storage (2J PRO only) Up to 64GBs. Data cannot be edited per 21 CFR Part 11
Reports (2J PRO only) Leak test results saved as a PDF (Summary and Detailed) and CSV file
Standards Compliance
     Industry 21 CFR Part 11, ISO 14644-3, NSF-49, IEST-RP-CC034, EN 12469, ISO/IEC 17025 (ships from ATI with ISO/IEC 17025 accredited calibration)
     Electrical & Safety CE, UKCA, EN 61010-1:2010, EN 61326-1:2021, FCC Part 15 Subpart B, ISED Canada ICES-003 Issue 7

Get the job done faster with a user-friendly interface and ergonomic hardware.

Intuitive, Easy-to-Use Interface

  • Fast and easy setup—begin scanning right away

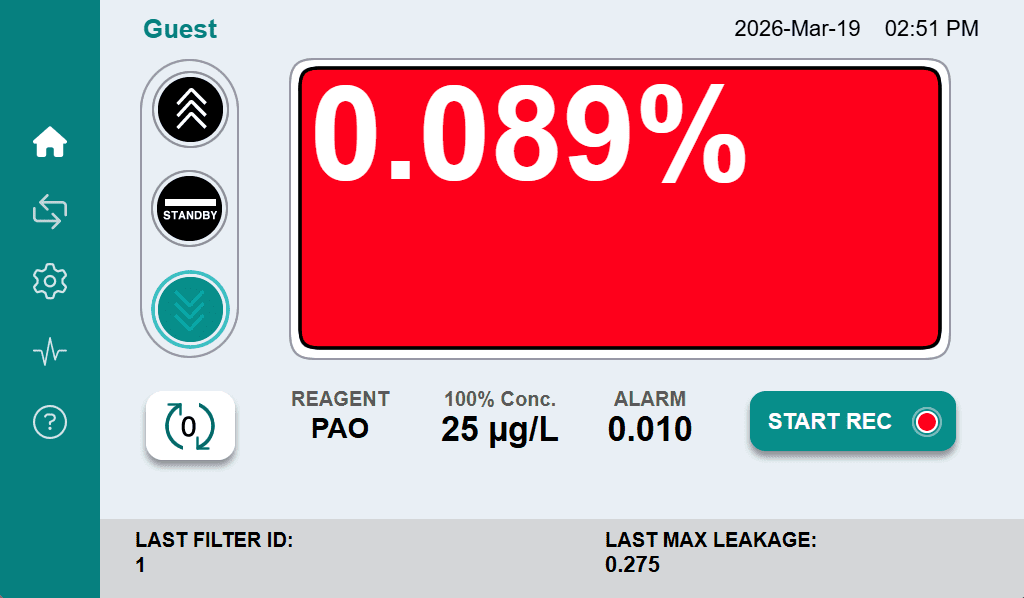

  • Critical leak test parameters displayed on screen
  • Easy to change Reagent, Upstream Concentration, and Alarm Set Point
  • Users can perform firmware updates to add features
  • Supports multiple languages
  • On-board help

Hardware Engineered for Convenience

  • 17.8 cm (7 in.) scratch-resistant color touchscreen compatible with nitrile gloves
  • Angled high-resolution display for optimal viewing
  • Standby Mode turns off the pump, extending battery life and minimizing noise
  • Lightweight, 7.7 kg (17 lbs) and durable
  • Enhanced flow control: +/-5%
  • Easy to wipe clean

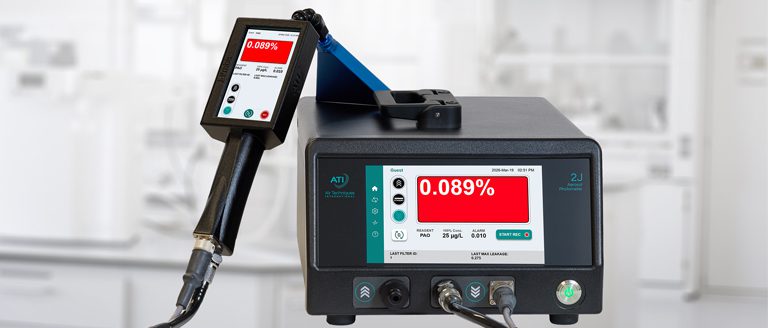

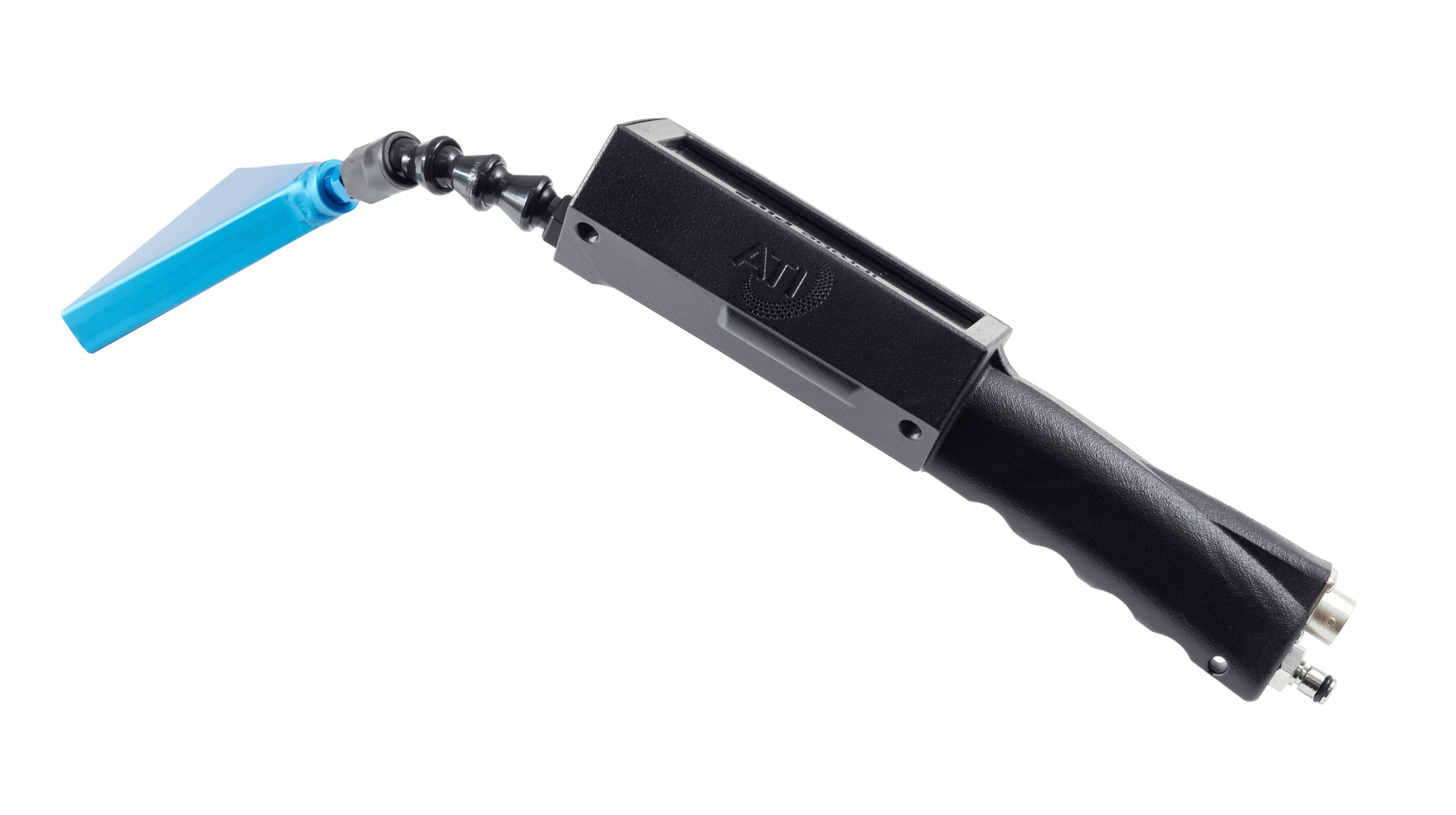

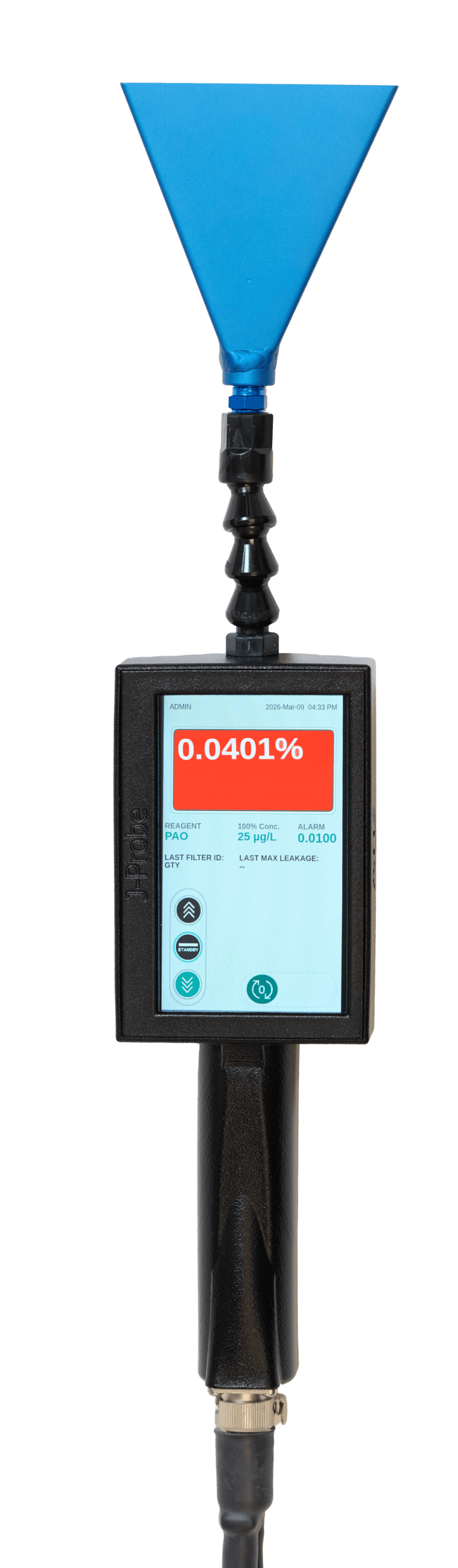

Key Functions Controlled Directly from J-Probe

  • Large, 10.9 cm (4.3 in.) color touchscreen
  • Enable the Upstream/Downstream/Standby functions from J-Probe
  • Start and Stop leak scans from the J-Probe
  • Send leak test results to the optional thermal printer

 External Battery (Optional)

  • The 2J can be operated with an external battery
  • Use any commercially available battery (min. 100W output with USB-C connection)
  • External battery is hot-swappable within 10 seconds, avoiding shutdown when switching to/from battery power
  • Scan ~20 standard 0.61 x 1.22 m (2 x 4 ft) HEPA filters with normal operation using a 26K mAh capacity battery3

3 Using battery purchased from ATI. Individual performance may vary.



The 2J PRO offers unmatched leak test traceability, data storage and reporting.

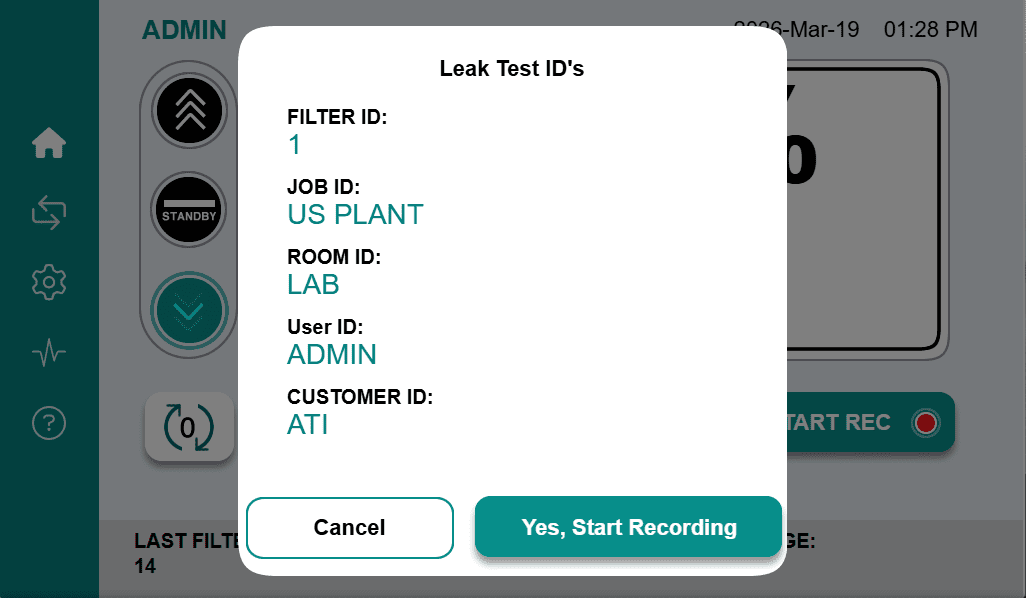

Leak Test Results Traceability

  • Leak test IDs provide traceability of each saved leak test
    • Filter ID
    • Job ID
    • Room ID
    • User ID
    • Customer/Site ID
  • Leak test IDs are included with all saved and printed reports

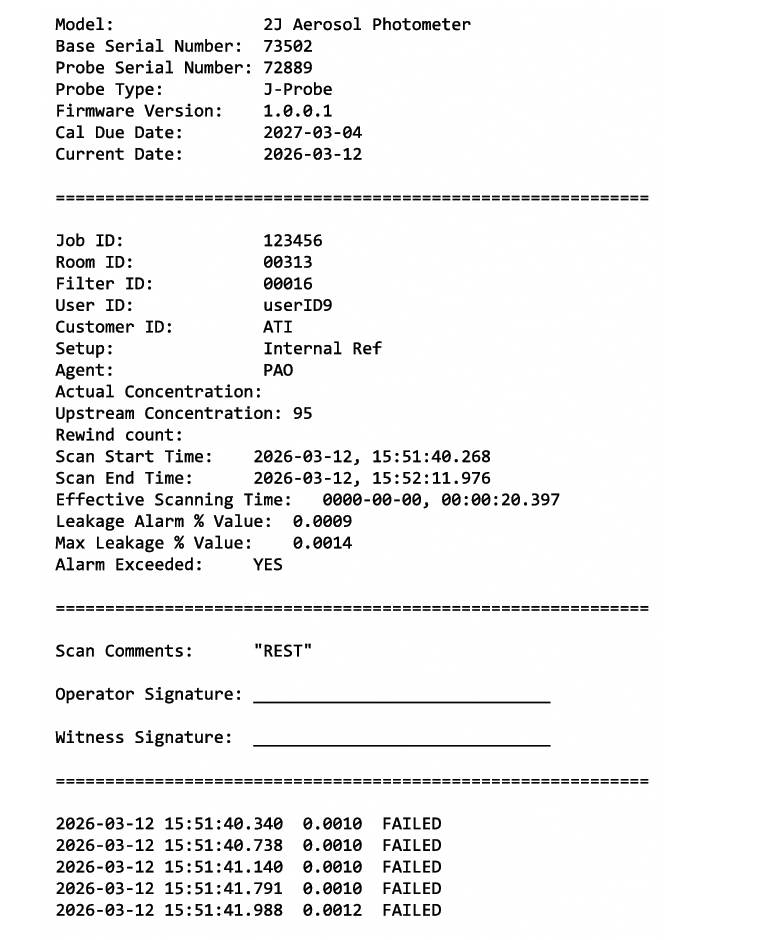

Data Storage and Reporting

  • Leak test results are saved as a PDF (Summary and Detailed) and CSV file
  • 64GB of storage, up to 150,00 saved scans
  • Data retrieved after applying filters
  • Data can be exported via Wi-Fi, USB flash drive, or optional thermal printer
  • Previously saved leak test results are viewable on the unit

Data Security

  • Saved leak test results cannot be edited on the 2J, meeting 21 CFR Part 11 requirements
  • Saved leak test data can be password protected
  • User login for additional data integrity and traceability

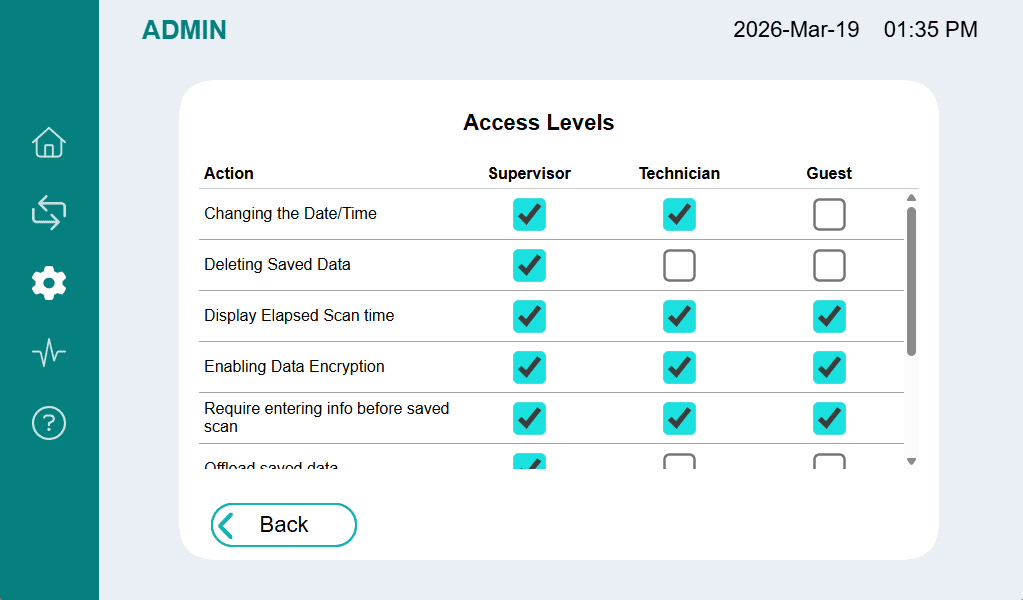

Multi-User Level Access

  • Four user levels – Administrator, Supervisor, Technician, and Guest
  • Each user has a unique username and password
  • Administrator can determine which functions are available for each user level
  • Up to 250 users can be created

Audit Trail

  • 21 CFR Part 11 compliant with 30,000 recorded activities
  • Captures all changes with date/time stamp:
    • System settings
    • Operational settings
    • User log in / log out
  • Only Administrator level user can download the audit trail

Future firmware updates will be posted here.

Future home of 2J How-to videos.

Contact ATI

410-363-9696

Contact Form

Outside the US?
Find your local distributor

Part Numbers

Part Number Description
2J 2J Base Unit
2J-BNDL 2J, J-Probe, Case
2J-PRO 2J PRO Base Unit
2J-PRO-BNDL 2J PRO, J-Probe, Case
2JN 2J-N Base Unit
2JN-BNDL 2J-N, J-Probe, Case
2JN-PRO 2J-N PRO Base Unit
2JN-PRO-BNDL 2J-N PRO, J-Probe, Case

Optional Accessories

Item Description Part Number

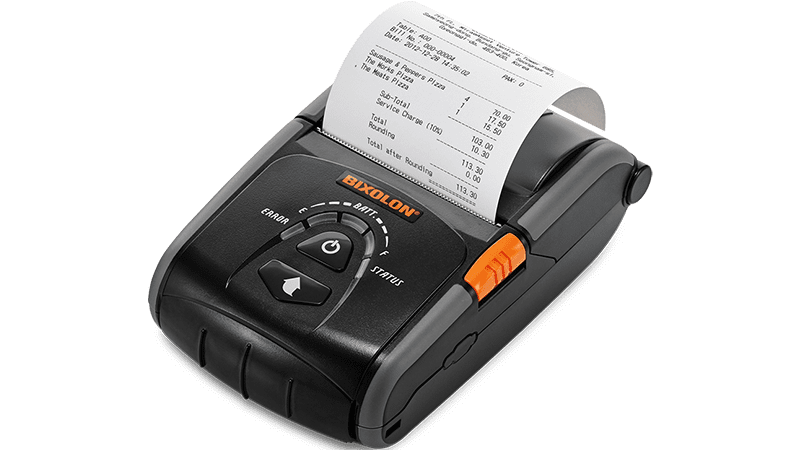

Thermal Printer Rechargeable internal battery, 5.08 cm (2 in.) wide thermal paper 2J-THERM-PRNT

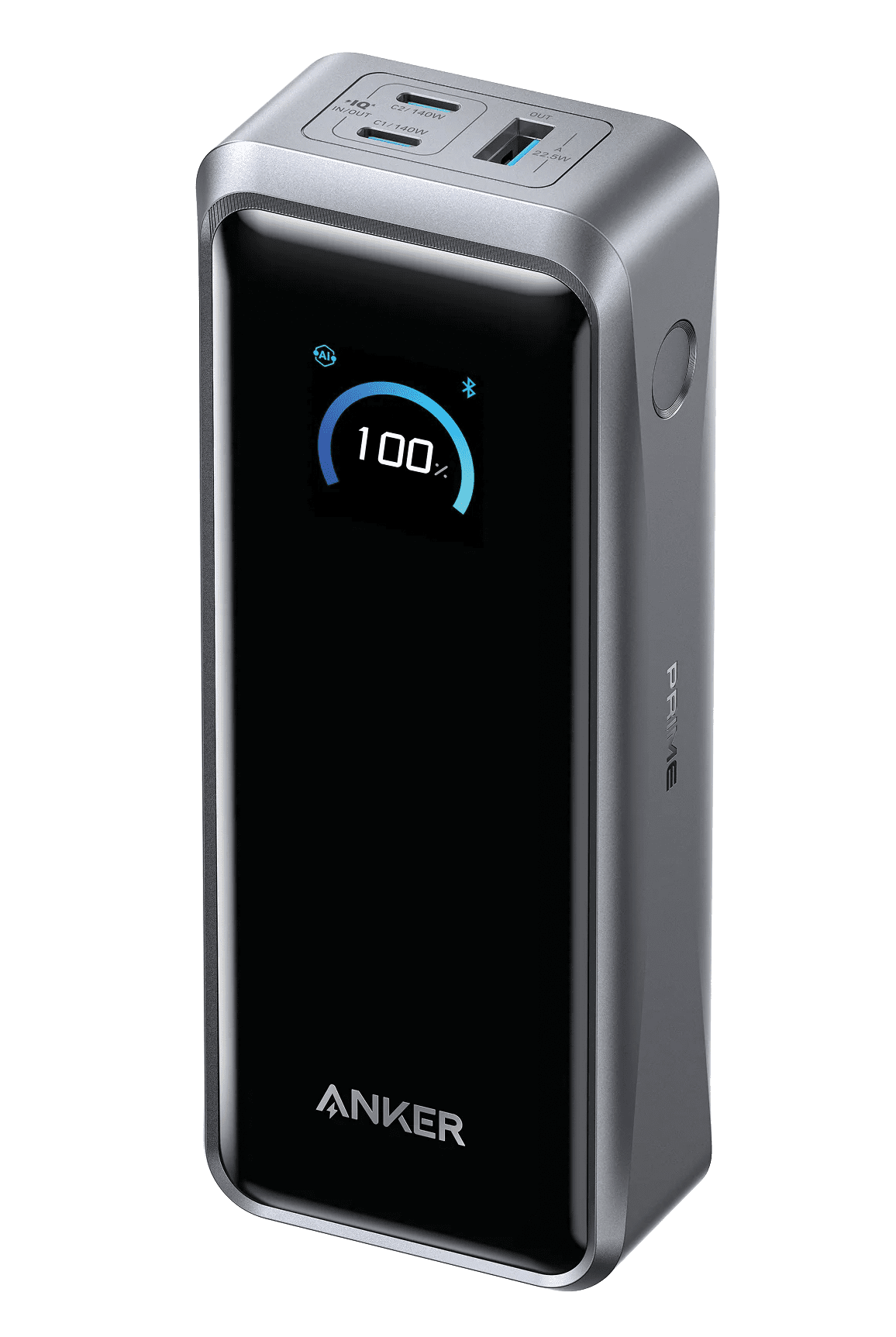

External Battery Anker Prime Power Bank (26K, 300W) 2J-EXT-BTY
